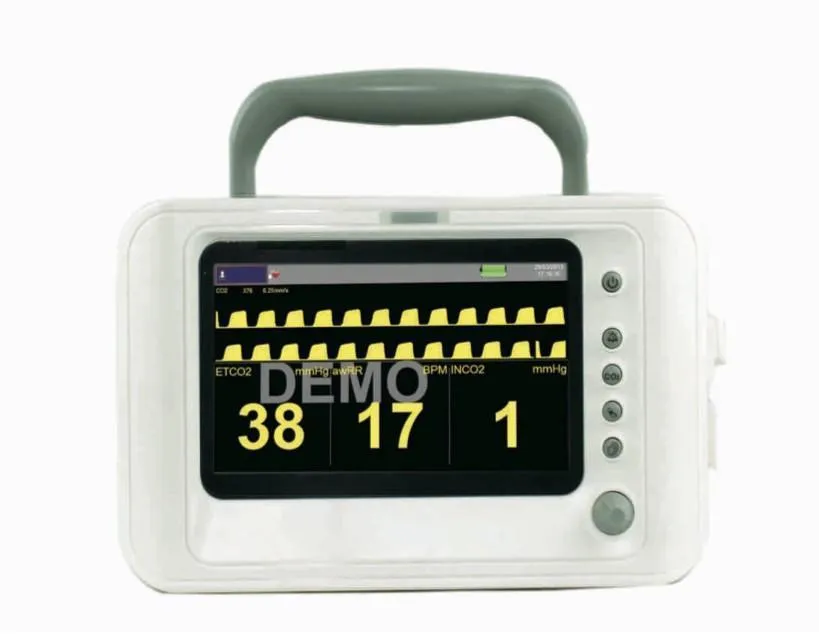

KM-13C is a portable affordable patient monitor build with a durable design. Standard functions are EtCO2 and Respiratory. All accessories are included.
Features
- 7" Color TFT Display, led backlight, 800x600 pixels.
- Operating Mode Selection: Neonatal/Pediatric/Adult.
- Visual and Audio alarms, adjustable.
- Patient management, name and age and id.
- Network with Central Station Software,
- Built-in removable and rechargeable lithium battery,
- Easy operating UI with both Keypad menu.
- Powerful data storage and management, Trend graph, Trend table, etc
- Arrhythmia analysis and S-T segment analysis.
Standard Parameters
- EtCO2, RESP
- Touchscreen, Thermal Recorder
EtCO2
- Method: Non-dipersive infrared; autocalibrating
- N2O Compensation: Manual; On/ Off, user selectable Range: 0 to 114 mmHg ; 0 to 15 % Flow, Sample rate : Sidestream ; 50 ml/min
- Accuracy: / - 2 mmHg or 5 % of reading
Printer (optional)
- Type Thermal printer
- Paper Speed 25 or 50 mm/sec
Trends
- Memory 96 hr at 30-second intervals for an NIBP reading every 5 minutes
- Display trabular; graphical
Respiration Rate
- Rate Adult: 0 ~ 120 rpm | Neo/Ped 0 ~ 150 rpm
- Resolution1rpm
- Accuracy± 2 breath/min
Physically
- Power Source 110V-240V, 50/60Hz
- Weight Approximate 1.7 Kg
- Audio volume adjustable 1 ~4 level
